Benchmarks
Benchmarking is hard and I might not be doing it right. Moreover, benchmarking sorting algorithms highlights that the time needed to sort a collection of elements depends on several things: the type to sort, the size of collection, the cost of comparing two values, the cost of moving two values, the distribution of the values in the collection to sort, the collection itself, etc... The aim of this page is to help you choose a sorting algorithm depending on your needs. There is no clear structure to this page: we will mostly see different benchmarks and try to analyze them a bit.
All of the graphs on this page have been generated with slightly modified versions of the scripts found in the project's benchmarks folder. There are just too many things to check; if you ever want a specific benchmark, don't hesitate to ask for it.
Most sorting algorithms are designed to work with random-access iterators, so this section is deemed to be bigger than the other ones. Note that many of the algorithms work better with contiguous iterators; the resuts for std::vector and std::deque are probably different.

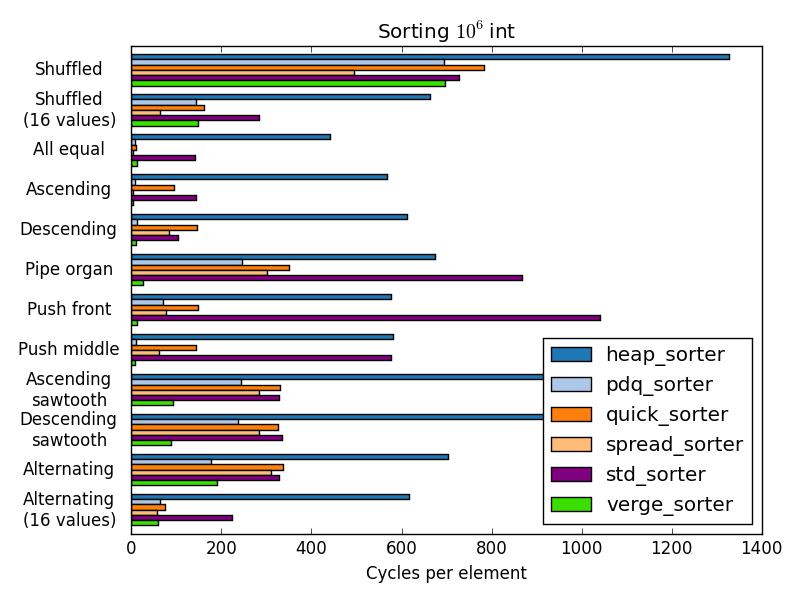

As we can see, even though its algorithmic complexity is O(n log n), heap_sorter is simply too slow on average, no matter the pattern. std_sorter actually performs worse than expected (the libstdc++ one), especially for some patterns. The best sorting algorithms for this configuration are pdq_sorter, quick_sorter, spread_sorter and verge_sorter.
spread_sorter is by far the best sorter when it comes to sorting truly random collections and is excellent when the number of values in the collection is low (16 values in the examples). When there are pipe-organ patterns, verge_sorter seems to be the best match since it takes advantage of big subsequences sorted in ascending or descending order. That said, both of these sorters use additional memory; pqd_sorter is the best sorter if a small memory footprint is needed.

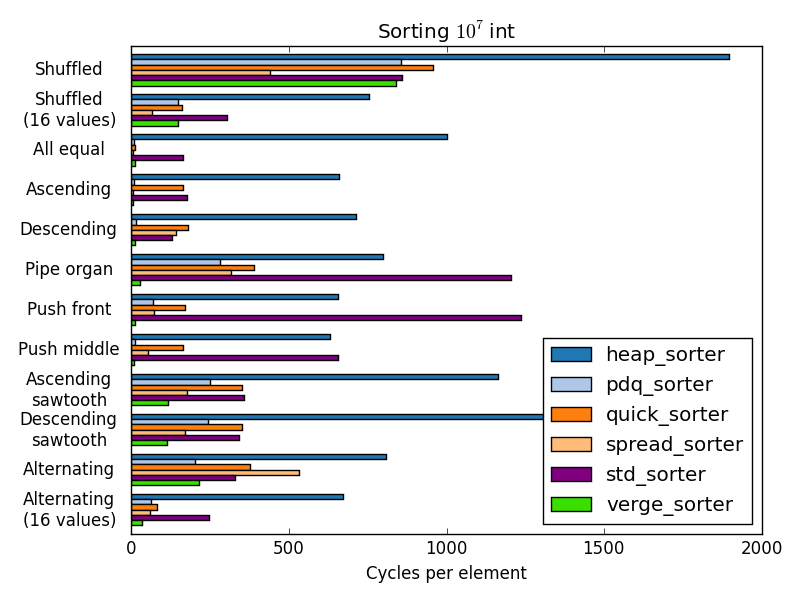

Compared to the previous graph, a few things have changed: while it's still better than anything else for random distributions, spread_sorter has bad performance for the Alternating distribution. My guess is that it has to do with the fact that it's a radix-sort kind of algorithm and the fact that the Alternating case has both negative values and the widest range of values among the distributions doesn't help. heap_sorter is still the slowest thing ever.
std_sorter seems to reach some kind of worst case behaviour for some distributions, making it less usable than the other unstable sorters in this test case. Actually quick_sorter should also have some quadratic worst cases, but the median-of-9 pivot selection makes it harder to find such worst cases.

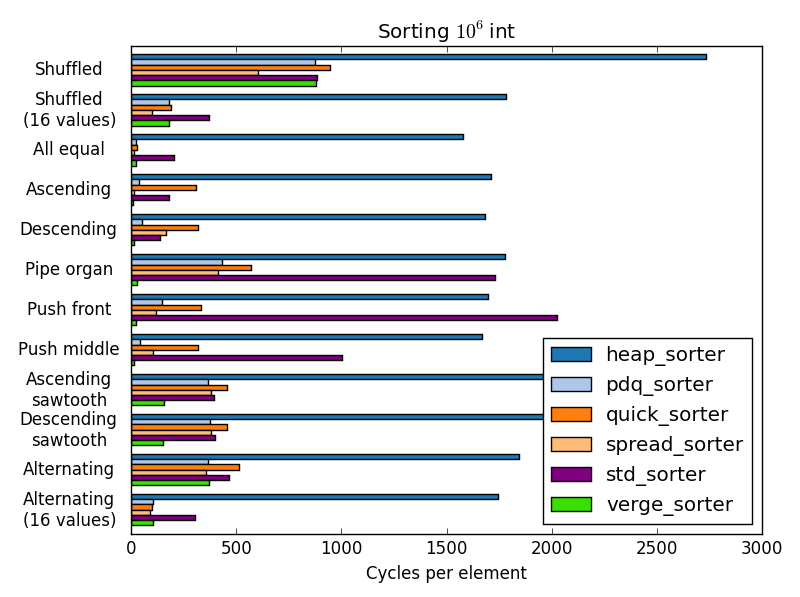

The results for std::deque are close to those for std::vector. The most notable difference is that heap_sorter is even slower than for std::vector compared to the other sorters; apparently, random-access has a noticeable cost when the iterators are not contiguous. Otherwise, the conclusions are pretty much the same than with std::vector: when the distribution is truly random, spread_sorter is still the obvious winner, while verge_sorter beats distributions where big chunks of data are already sorted. pdq_sorter is still the best match when a small memory footprint is required. std_sorter still has some kind of worst case behaviour for the Pipe organ, Push front and Push middle patterns.

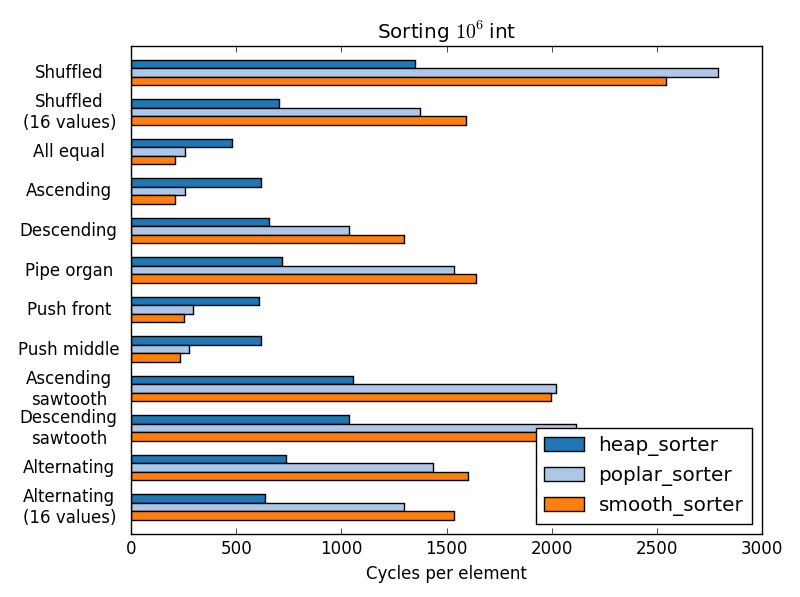

As we have seen in the previous section, heap_sorter tends to be really slow. Its main use is as a fallback for introsort-like sorters that perform log n quicksort steps before switching to a heapsort if the collection is not sorted (it ensures the O(n log n) complexity of introsort-like algorithms). cpp-sort actually provides several heapsorters with different properties, all of them build a heap then remove elements one by one to sort the collection, but the actual heaps are different (implementation-defined heap for heap_sorter since it uses std::make_heap, but likely a regular maxheap, forest of Leonardo heaps for smooth_sorter, and forest of perfect balanced binary heaps for poplar_sorter).
The regular heap_sorter has by far the best worst case and average performance. smooth_sorter and poplar_sorter are adaptative as can be seen when the collection so sort is already almost sorted, but their average running time is just too slow to be usable.
Sorting algorithms that handle non-random-access iterators are generally second class citizens, but cpp-sort still has a few ones. Obviously quadratic algorithms such as insertion sort or selection sort are ignored for these benchmarks. The most interesting part is that we can see how generic sorting algorithms perform compared to algorithms such as std::list::sort which are aware of the data structure they are sorting.

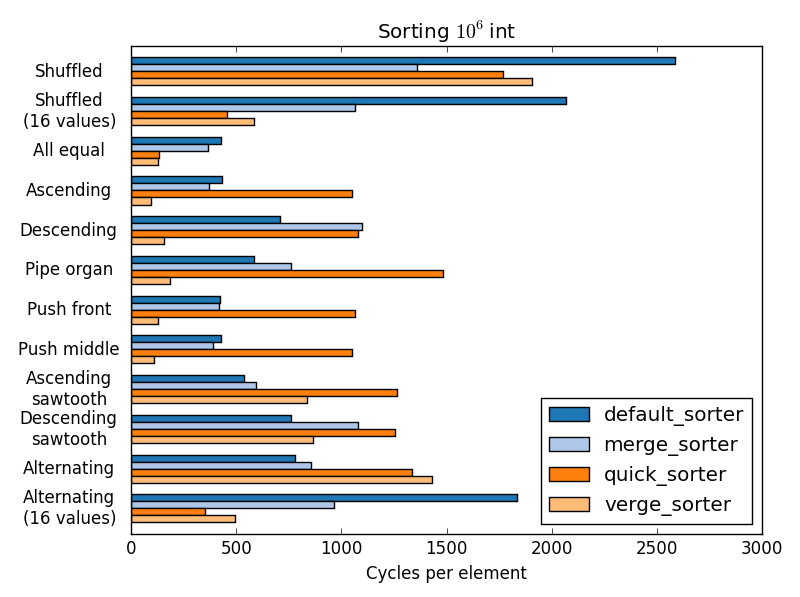

First of all, note that default_sorter uses self_sort_adapter, which means that in this benchmark, the sorting algorithm used by default_sorter is actually std::list::sort. Apparently, std::list::sort is efficient for many patterns, but it doesn't handle random distributions that much and also has some problems with Alternating (16 values). On the other hand, quick_sorter works really well when there are few values, but doesn't really handle patterns as well as the other algorithms. verge_sorter is rather good when there are not many runs in the collection to sort, and falls back on quick_sorter when the runs aren't big enough, which means that it's good for some patterns, but always slower than quick_sorter otherwise (it's still more than decent when there aren't many values). Finally, merge_sorter adapts rather well to many patterns, especially when the collection is already sorted to some degree in ascending order; it is by far the best algorithm to handle the Shuffled distribution.

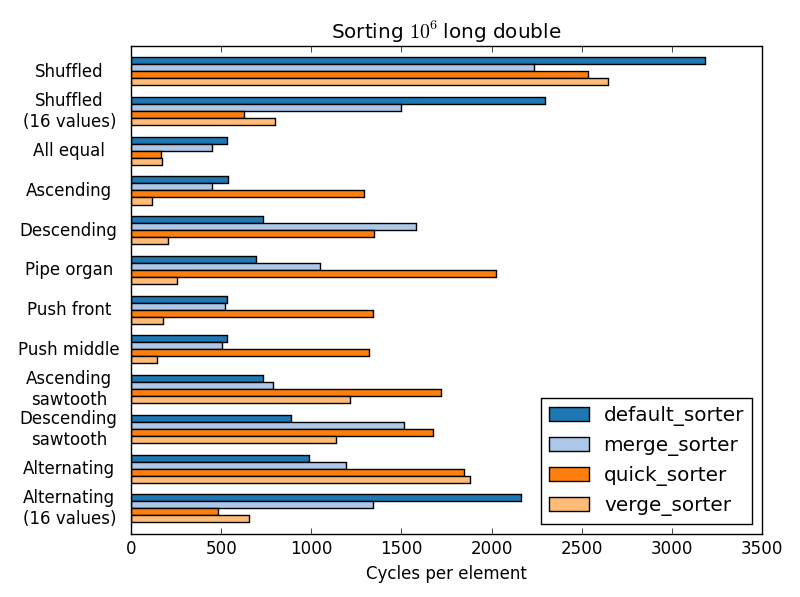

The results are pretty much the same than with integers. The most important difference is that std::list::sort isn't much slower since it does not move/swap values but relinks nodes instead, so no matter the size of the types to sort, relinking always has the same cost. Therefore, it's a bit better than with integers compared to the other sorting algorithms; I expect it to be the better and better when the types to sort are more expensive to move around.
Even fewer sorters can handle forward iterators; just like with bidirectional iterators, we only care about the sorters that are not almost always quadratic, which means that we care about the same sorters than before, except verge_sorter since it sometimes needs to call std::reverse which requires bidirectional iterators.

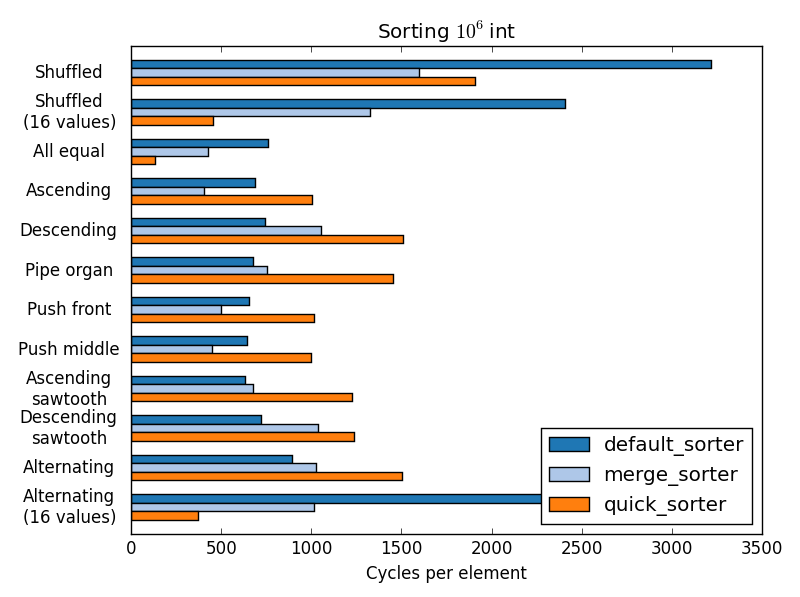

As expected, default_sorter actually calls std::forward_list::sort, which is a bit better than with bidirectional iterators compared to the other sorting algorithms, probably because it has fewer nodes to relink. quick_sorter is still excellent when there are not many different values in the collection to sort but is less efficient than std::forward_list::sort for almost every specific pattern. merge_sorter is pretty good when the collection to sort is mostly ascending since it adapts to ascending runs; it has the best worst case among the tested algorithms.

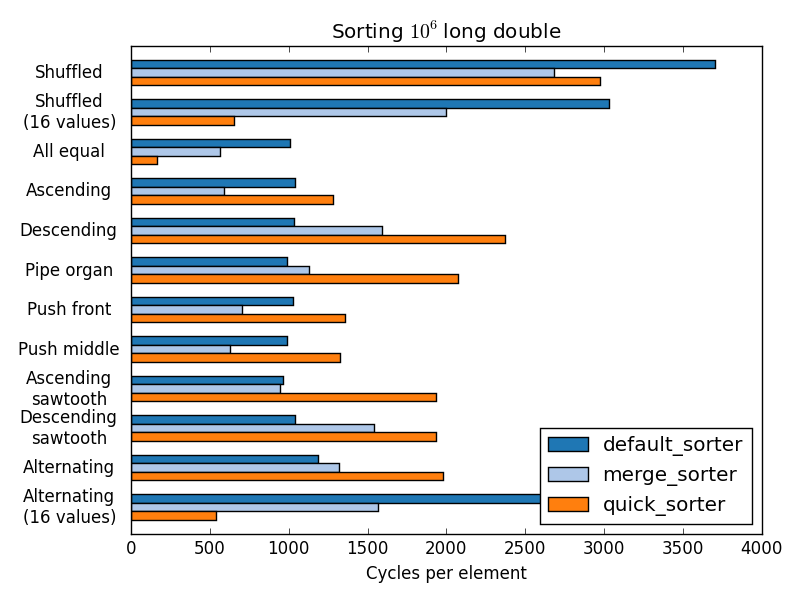

There is almost no difference compared to the previous graph except the overall time. Just like with bidirectional iterators, I would expect std::forward_list::sort to perform gradually better when the objects to sort are more expensive to move around. The good performances of merge_sorter in all the benchmarks are due to the fact that it can allocate memory to perform the merges; it adapts to the memory it is given, but it degrades to a O(n log² n) algorithm when no additional memory is available.

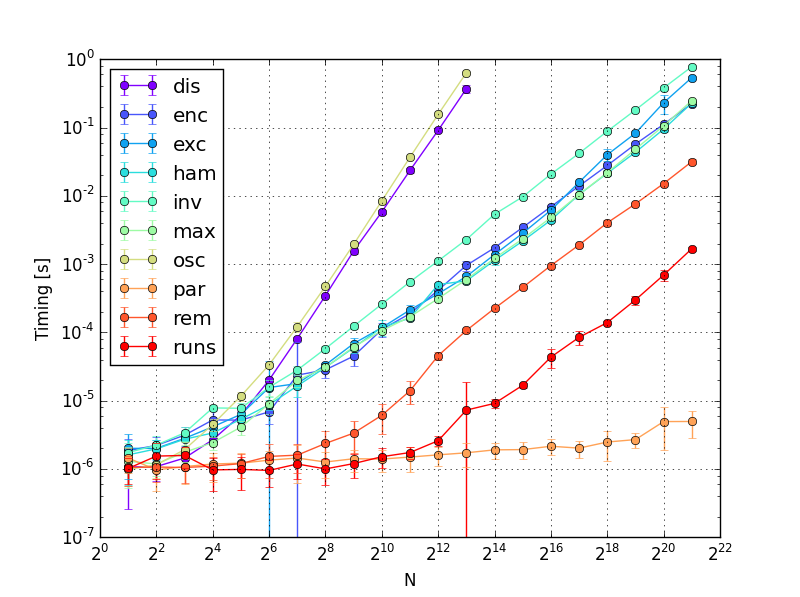

This graph shows the running time of the different measures of presortedness when run on sequences of random integers of various sizes. While Par(X) seems to beat every other measure, be careful: it is highly adaptative, but its complexity is O(n² log n), which means that it can be as slow as Dis(X) or Osc(X) for some inputs, if not even slower.
