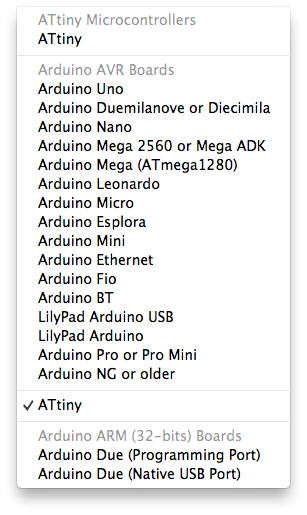

In the platform.txt file below, if I uncomment the first line, the ATtiny board defined in boards.txt (also below) shows up twice, once at the top of the menu (in "ATtiny Microcontrollers") and once after a separator after "Arduino NG or older". The values in the "Clock" and "Processor" menus are also duplicated.
# name=ATtiny Microcontrollers
tools.avrdude.erase.params.verbose=-v -v -v -v
tools.avrdude.erase.params.quiet=-q -q
tools.avrdude.erase.pattern="{cmd.path}" "-C{config.path}" {erase.verbose} -p{build.mcu} -c{protocol} {program.extra_params} -e -Ulock:w:{bootloader.unlock_bits}:m -Uefuse:w:{bootloader.extended_fuses}:m -Uhfuse:w:{bootloader.high_fuses}:m -Ulfuse:w:{bootloader.low_fuses}:m
tools.avrdude.bootloader.params.verbose=-v -v -v -v
tools.avrdude.bootloader.params.quiet=-q -q
tools.avrdude.bootloader.pattern="{cmd.path}" "-C{config.path}" {bootloader.verbose} -p{build.mcu} -c{protocol} {program.extra_params} -Ulock:w:{bootloader.lock_bits}:m
menu.cpu=Processor
menu.clock=Clock
attiny.name=ATtiny
attiny.bootloader.tool=avrdude2
attiny.bootloader.unlock_bits=0xff
attiny.bootloader.lock_bits=0xff
attiny.build.core=arduino:arduino
attiny.build.board=attiny
attiny.menu.cpu.attiny45=ATtiny45
attiny.menu.cpu.attiny45.upload.maximum_size=4096
attiny.menu.cpu.attiny45.build.mcu=attiny45
attiny.menu.cpu.attiny45.build.variant=tiny8
attiny.menu.cpu.attiny85=ATtiny85
attiny.menu.cpu.attiny85.upload.maximum_size=8192
attiny.menu.cpu.attiny85.build.mcu=attiny85
attiny.menu.cpu.attiny85.build.variant=tiny8
attiny.menu.cpu.attiny44=ATtiny44
attiny.menu.cpu.attiny44.upload.maximum_size=4096
attiny.menu.cpu.attiny44.build.mcu=attiny44
attiny.menu.cpu.attiny44.build.variant=tiny14
attiny.menu.cpu.attiny84=ATtiny84
attiny.menu.cpu.attiny84.upload.maximum_size=8192
attiny.menu.cpu.attiny84.build.mcu=attiny84
attiny.menu.cpu.attiny84.build.variant=tiny14
attiny.menu.clock.internal1=1 MHz (internal)
attiny.menu.clock.internal1.bootloader.low_fuses=0x62
attiny.menu.clock.internal1.bootloader.high_fuses=0xdf
attiny.menu.clock.internal1.bootloader.extended_fuses=0xff
attiny.menu.clock.internal1.build.f_cpu=1000000L
attiny.menu.clock.internal8=8 MHz (internal)
attiny.menu.clock.internal8.bootloader.low_fuses=0xe2
attiny.menu.clock.internal8.bootloader.high_fuses=0xdf
attiny.menu.clock.internal8.bootloader.extended_fuses=0xff
attiny.menu.clock.internal8.build.f_cpu=8000000L
attiny.menu.clock.external8=8 MHz (external)
attiny.menu.clock.external8.bootloader.low_fuses=0xfe
attiny.menu.clock.external8.bootloader.high_fuses=0xdf
attiny.menu.clock.external8.bootloader.extended_fuses=0xff
attiny.menu.clock.external8.build.f_cpu=8000000L
attiny.menu.clock.external16=16 MHz (external)
attiny.menu.clock.external16.bootloader.low_fuses=0xfe
attiny.menu.clock.external16.bootloader.high_fuses=0xdf
attiny.menu.clock.external16.bootloader.extended_fuses=0xff
attiny.menu.clock.external16.build.f_cpu=16000000L
attiny.menu.clock.external20=20 MHz (external)
attiny.menu.clock.external20.bootloader.low_fuses=0xfe
attiny.menu.clock.external20.bootloader.high_fuses=0xdf
attiny.menu.clock.external20.bootloader.extended_fuses=0xff
attiny.menu.clock.external20.build.f_cpu=20000000L
