Fix geom_rug + coord_flip #2988
Conversation
The rugs in `geom_rug` are drawn along an axis depending the `sides` parameter. Since the coordinate system does not alter the `geom` parameters, the `geom` has to alter any parameters that determine where the geoms are plotted. fixes tidyverse#2987
| @@ -66,6 +66,10 @@ GeomRug <- ggproto("GeomRug", Geom, | |||
| rugs <- list() | |||
| data <- coord$transform(data, panel_params) | |||
|
|
|||
| if (inherits(coord, 'CoordFlip')) { | |||
There was a problem hiding this comment.
I wish we wouldn't test for capabilities by testing for inheritance, but this is how it's done for CoordFlip all over the ggplot2 code base, so I guess it's fine.
There was a problem hiding this comment.
The first instinct was to use is(), but it was not used anywhere in the coord base.
There was a problem hiding this comment.
What I meant was other coord features are queried by asking the coord, e.g. coord$is_free(). So it would probably make sense to introduce coord$is_flip(). But that's for a different PR.
| @@ -66,6 +66,10 @@ GeomRug <- ggproto("GeomRug", Geom, | |||
| rugs <- list() | |||
| data <- coord$transform(data, panel_params) | |||
|
|
|||
| if (inherits(coord, 'CoordFlip')) { | |||
| sides <- chartr('tblr', 'rlbt', sides) | |||
There was a problem hiding this comment.
Would you mind adding a comment to this line explaining what's happening?
There was a problem hiding this comment.
I have added a comment to the block.
|
@hadley This looks good to me. Any concerns from you? |
|
This old issue has been automatically locked. If you believe you have found a related problem, please file a new issue (with reprex) and link to this issue. https://reprex.tidyverse.org/ |
The rugs in
geom_rugare drawn along an axis depending thesidesparameter. Since the coordinate system does not alterthe
geomparameters, thegeomhas to alter any parametersthat determine where the geoms are plotted.
fixes #2987

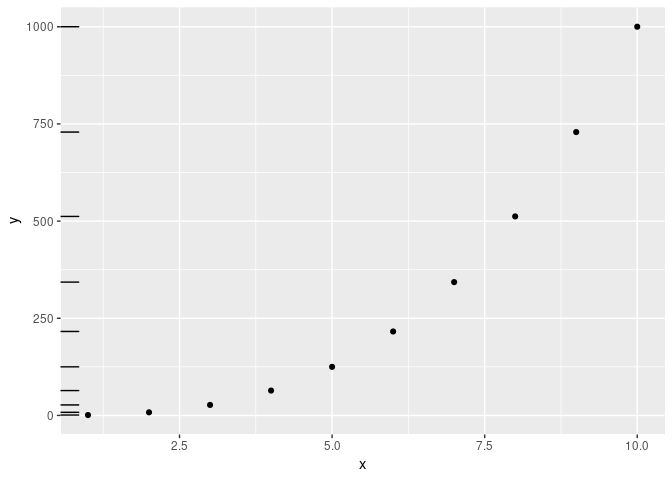

Created on 2018-11-09 by the reprex package (v0.2.1)
